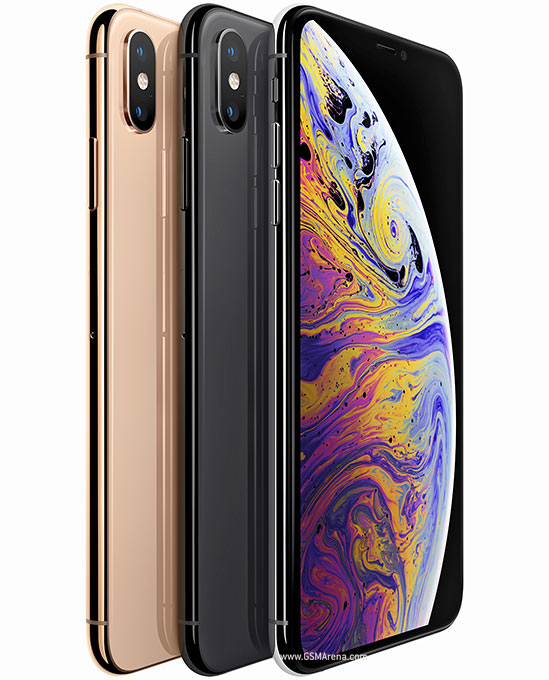

iPhone XS Max

Display

Screen size 6.5 in

Panel type Super Retina OLED, HDR10, Dolby Vision, 625 nits (HBM)

Resolution 1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density)

Screen protection Scratch-resistant glass

Performance

Chipset Apple A12 Bionic (7 nm)

CPU Hexa-core (2x2.5 GHz Vortex + 4x1.6 GHz Tempest)

GPU Apple GPU (4-core graphics)

RAM 4 GB

Storage 64 GB

Expandable storage (microSD) No

OS platform iOS

Operating system (version) iOS 12, upgradable to iOS 16.2

Camera

Main rear sensor 12 MP

Main aperture f/1.8

Optical image stabilization (OIS) Yes

Full rear camera setup 12 MP, f/1.8, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OISn 12 MP, f/2.4, 52mm (telephoto), 1/3.4", 1.0µm, PDAF, OIS, 2x optical zoom

Front camera 7 MP

Battery & Charging

Battery capacity 3,174 mAh

Wired charging speed 15 W

Wireless charging Yes

Reverse wireless charging No

Build

Weight 208 g

Dimensions 157.5 x 77.4 x 7.7 mm (6.20 x 3.05 x 0.30 in)

Build materials Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame

Water resistance IP68

Colors available Space Gray, Silver, Gold

SIM type Nano-SIM and eSIM or Dual SIM (Nano-SIM, dual stand-by) - for China

Connectivity

5G support No

Bluetooth version 5.0, A2DP, LE

Wi-Fi standard Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot

NFC Yes

GPS / satellite positioning Yes

Charging port Lightning, USB 2.0

3.5mm headphone jack No

FM radio No

Release

Release date Sep 2026
